16,25&35MM EAVES BEAM Price range: £114.40 through £251.79 + VAT
PVC END SHEET CLOSERES Price range: £4.49 through £5.66 + VAT
ADDITIONAL END CAP SELF SUPPORT
£5.33 + VAT
Universal Additional End Cap For Both Intermediate and End Bars
Available in White and Brown
Related products
16,25&35MM SELF SUPPORT GLAZING BAR & END CAP
16,25&35mm Self Support Glazing Bar & End Cap - Molan Bars & Accessories
A professionally engineered Self Supporting Roofing System which Free-Spans 4 metres and accommodates 16mm 25mm and 35mm. Multiwall Polycarbonate Roofing Sheets. Designed for flexibility of use and ease of installation. The system includes a Variable Pitch Wall Plate, Intermediate Bars and End Bars both with UPVc Top Cap and Underclad. Key Features
- Professionally engineered
- Innovative design
- Accommodates all major sheet thicknesses
- Low maintenance
- Ideal for carports, canopies and replacement roofing
- Competitively priced
- Available in White and Brown finish
16,25&35MM SELF SUPPORT END BAR & END CAP
Used for glazing canopies / carports / lean to roofs. Self Supported Glazing Bars do not need to have rafter beneath them.
Self Support Edge Glazing Bars used with our eaves beam and wall plate it makes an ideal choice for erecting or replacing a small lean to conservatory roof, canopy or carport. Our Self Support Glazing Bars are compatible with 16mm, 25mm or 35mm polycarbonate sheet and 24mm sealed units. Available in a range of lengths.
Loading specifications apply. Bars have limitations, please understand the maximum glazing bar projections and sheet widths before ordering product. Please contact us for details concerning the safe installation of a self supported roof. This product is only really suited to an experienced DIY’er or tradesman.
MAXIMUM PROJECTION OF SELF SUPPORT GLAZING BAR UNSUPPORTED IS 4M. MAXIMUM POLYCARBONATE WIDTH IS 1000MM. MAXIMUM SEALED UNIT WIDTH IS 800MM. PLEASE NOTE THE SPANS AND MAXIMUM PERMITTED SHEET WIDTHS CHANGE DEPENDANT UPON PITCH AND PROJECTION. PLEASE CONTACT US FOR MORE INFORMATION.
MINIMUM PITCH IS 5 DEGREES – ALTHOUGH WE RECOMMEND A MINIMUM PITCH OF 10 DEGREES

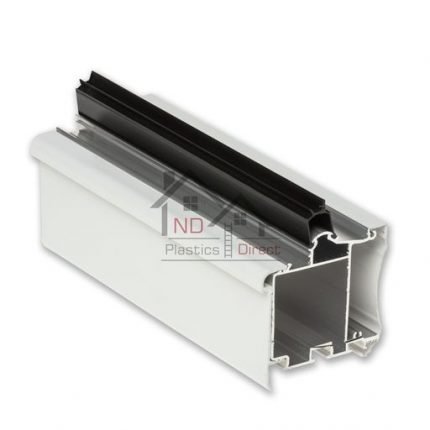

16,25&35MM EAVES BEAM
Eaves Beam for use with our Self Support Glazing Bars. Eaves Beams are used at the lower end of the roof (nearest the gutter) and sit on top of the window frames beneath ready for the glazing bars to be installed on top. Gutter brackets to suit squareline guttering also available upon request. Available in 3m, 4m & 6m lengths.
Self Support Glazing Bars have limitations, please understand the maximum glazing bar projections and sheet widths before ordering product. Please contact us for details concerning the safe installation of a self supported roof. This product is only really suited to an experienced DIY’er or tradesman.
PVC END SHEET CLOSERES
PVC End sheet end profile 2.1m long in white. The Sheet End closures or 'U' Drips as they are sometimes known are used to close the top & bottom ends of Polycarbonate sheet. They are designed to be used in conjunction with the aluminium and vent tapes, first tape the open ends of the sheeting with the appropriate tape prior to installation, then apply the sheet end closures to act as end caps/covers to protect and cover the tapes. They have been designed with a unique drip to prevent water from being blown under the sheet into the eaves space on your roof.
